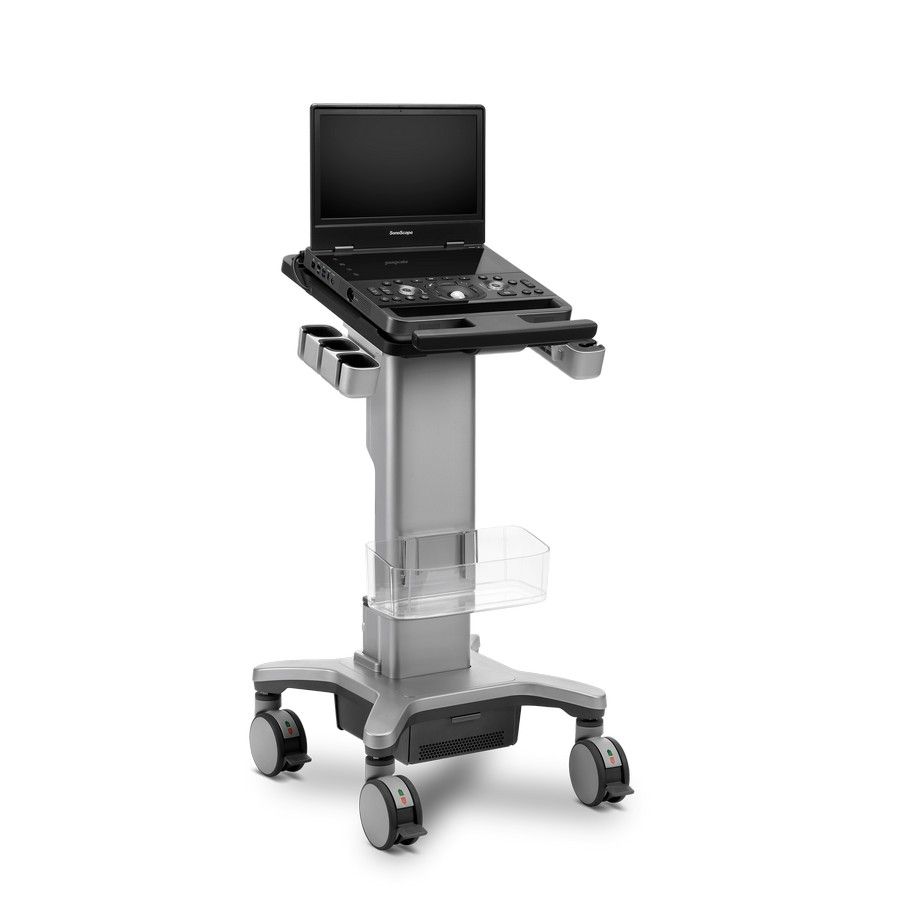

SonoScape X11

Smart connection, streamlined workflow

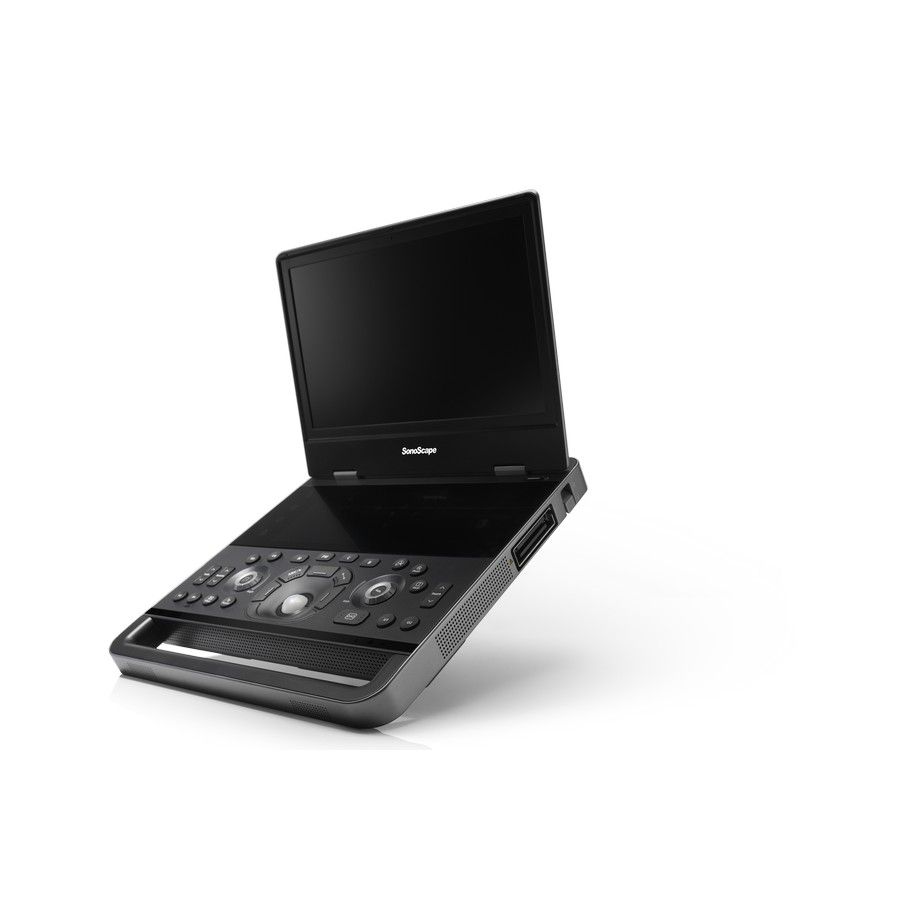

De X11 laptop echografie is uitgerust met een reeks krachtige efficiëntie tools die zijn ontworpen om de dagelijkse workflow van professionals in de gezondheidszorg te verbeteren. Door taken te stroomlijnen en kostbare tijd te besparen, geeft het professionals een echt handig en gebruiksvriendelijk ultrasoundsysteem. Met de X11 ervaart u geavanceerde technologie die snellere en nauwkeurigere diagnostiek ondersteunt – alles binnen handbereik.

Auto Wakeup

Biedt naadloos gemak door de sonde automatisch te activeren en de standaard voorinstelling te activeren wanneer de sonde in de freeze stand wordt opgetild.

SonoPage

Integreert metingen, lichaamsmarkeringen en aantekeningen op één pagina. Gestroomlijnde interface voor gerichte diagnostiek.

SonoAssistant

Verhoogt standaardisatie en scanefficiëntie. Ondersteunt door de gebruiker gedefinieerde protocollen.

SonoHelp

Behandelt een verscheidenheid aan toepassingen en is een nuttig naslagwerk voor minder ervaren clinici.

Kunstmatige intelligentie (AI) toepassing

Met S-MSK kunnen standaardsecties van musculoskeletale gewrichten automatisch worden geïdentificeerd. Met één simpele klik worden de gewenste standaardvlakken direct uit de cineloop verkregen en worden de anatomische structuren gemarkeerd en geannoteerd in het beeld.

Technologie, betrouwbaarheid en ondersteuning

De SonoScape X11 biedt u volledige betrouwbaarheid. Het echografieapparaat wordt geleverd met de krachtige beeldvormingsfuncties van Sonoscape en standaard geleverd met:

Hardware

• X11 Main Unit
• 6-inch high-resolution monitor
• 3-inch multi-gesture touch screen
• Trackball
• 1 Active probe socket
• 1TB Built-in HDD
• 256G Built-in SSD
• WIFI Module (Built-in)
• Microphone Module (Built-in)
• ECG Module (Built-in)
• EMC S-Video Anti-Interference Accessories
• Built-in Batteries
• Power Adapter
• Travel Trolley Bag-Black
• Transducer 12L-A Linear Array Transducer (Composite Crystal) 3-17MHz 52 mm en/of Transducer C1-6A Convex Array Transducer (Single Crystal)

Software

• C-Field+ Revolutionary C-Field+ Architecture
• B Mode
• M Mode
• THI Tissue Harmonic Imaging
• PHI Pulse Invertion Harmonic Imaging
• AMM Including Anatomy M (AMM), Curved Anatomy M (CAMM)
• Color M Color Doppler M Imaging
• CFM Color Doppler Imaging
• PDI Mode Power Doppler Imaging
• DPDI Mode Directional Power Doppler Imaging
• TDI Mode Tissue Doppler Imaging, including TDI-M Mode and TDI Quantification, cardiology package should be configured at the same time
• PW Mode Pulse Wave Doppler Imaging
• CW Mode Continuous-wave Doppler Imaging
• HPRF High Pulse Repetition Frequency Imaging
• μScan 2D Speckle Reduction Technology
• HQ Scan 2D Contrast Enhancement Technology
• LGC Lateral Gain Compensation Techonology
• Auto SSC Autometric sound speed Compensation: automatically match to the best imaging sound speed in real time according to the human tissue
• Spacial Compound Utilizes multiple angles of insonation to create a single averaged image
• WideScan Support in linear, convex and phased arrays
• Image Rotation
• One-click optimization (Auto) Support in B mode, Color Mode and PW/CW Mode
• Simult Including Dual Live Mode and Triple Mode
• TSI Specific Tissue Imaging, including normal, tissue, liquid, fat
• ZOOM Including HD Zoom, Zoom, Screen-Zoom
• Panoramic Including 2D Panoramic and Color Panoramic
• FHR Fast high resolusion flow technology,  Fast speed Visualization of blood flow
• Bright Flow Three-dimensional Visualization of blood flow technology
• SR Flow Super resolusion Visualization of blood flow technology
• Micro F Micro vessel flow technology, Slow flow imaging of microvascularized structures
• QR code QR code for image transmision(General->Barcode)
• Built-in electronic instruction manual Built-in electronic instruction manual
• Voice Control Control the machine through voice commands
• Gesture Control Control the machine through gesture commands
• SonoCompare Comparison of images between current patients
• SonoExam Automatic memorization of operation flow
• SonoPage Dedicated user-defined Page Setup
• SonoSynch Remote Comunication with Ultrasound and Smart device
• SonoDrop On-site Wireless Image / Clip / Report Transmission
• SonoHelp Built-in Scanning Tutorials
• SonoAssistant Customized Workflow Protocol for Vascular and Obstetrics Applications
• Remote upgrade Remote Upgrade
• “- DICOM 3.0
• – HL7″ “- DICOM 3.0 : Including Store / Storage Commitment / Worklist / MPPS / Print / Structured Report / Q&R
  • HL7″
• IoT function Remote Machine Dignosis
• Auto Wakeup Automatically identify and activate while holding a probe, available on C1-6A, 12L-A, S1-5, C613, 7P-A.
• General Measurement Package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Abdominal measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Obstetric measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Gynecological measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Vascular measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Cardiac measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Urology measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Small Parts Measurement Package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Pediatric measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Pelvic floor measurement package “Includes dedicated preset / measurement / comment / bodymark /report etc.
• including semi-automatic pelvic floor measurement”
• Emergency measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Lungs measurement package Includes dedicated preset / measurement / comment / bodymark /report etc.
• Myocardial Function Index (TEI) A measure of the overall performance of the heart that takes into account both systolic and diastolic function
• PW Auto Trace Automatically traces the PW spectrum and completes the calculation
• Auto B Line Automatically detects and quantifies B-lines on lung ultrasound
• Auto Pleural Line Automatic measurement of pleural line thickness
• Auto IMT Automatic measurement for intima-media thickness, Vascular Package should be configured at the same time
• Auto Bladder Automatic measurement for bladder volume, urology measurement package should be configured at the same time
• ATI Attenuation Imaging (Only for CE)
• ABD Contrast Including TIC, MFI, MFI Time, Mix Mode, Contrast  HFR
• SMP Contrast Including TIC, MFI, MFI Time, Mix Mode, Contrast  HFR
• GYN Contrast Including TIC, MFI, MFI Time, Mix Mode, Contrast  HFR
• S-CV Automatic spectrum measurement tools of the cardiac function
• S-CV(meas.) Automatic 2D measurement tools of the cardiac function
• Auto EF Automatic Ejection Fraction Measurement, cardiology package should be configured at the same time
• MQA: Quantitative myocardial analysis (G-MQA, R-MQA) Including Global MQA and Regional MQA, Myocardial Quantitative Analysis, available on S1-5, 7P-A, 8P1 and must be configured with ECG Software
• Stress Echo Assess heart function under physical stress
• Auto NT Automatic Measurement of Nuchal Translucency
• Freehand 3D Obtain a 3D image without a volumetric probe
• 3D/4D Module Must be configured with volumetric probe
• Gesture operation Gesture operation for 3D/4D
• M-Slice Multi-Slice
• FreeVue Free Curve for Voluometric Anatomy
• S-Live Including S-Live Silhouette, S-Live Contour, must be configured with volumetric probe
• S-Depth Depth Volume Rendering for 3D/4D
• 3D Printing Format Output Fomat：ply, stl, obj, 3mf
